Product Summary
The 1MBI400F-060 is an IGBT power module. The applications of the 1MBI400F-060 are: Inverter for Motor Drive; AC and DC Servo Drive Amplifier; Uninterruptible Power Supply; Industrial Machines, such as Welding Machines.
Parametrics
1MBI400F-060 absolute maximum ratings: (1)Collecter-Emitter Voltage VCES: 600 V; (2)Gate-Emitter Voltage VGES ±: 20 V; (3)Collecter Current Continuous IC: 400 A; (4)1ms IC pulse: 800 A; (5)Continuous -IC: 400 A; (6)1ms -IC pulse: 800 A; (7)Max. Power Dissipation PC: 1440 W; (8)Operating Temperature Tj: +150 ℃; (9)Storage Temperature Tstg: -40 to +125 ℃; (10)Net. Weight: 415 g; (11)Isolation Voltage AC. 1min. Visol: 2500 V.
Features
1MBI400F-060 features: (1)Low Saturation Voltage; (2)Voltage Drive; (3)Variety of Power Capacity Series.

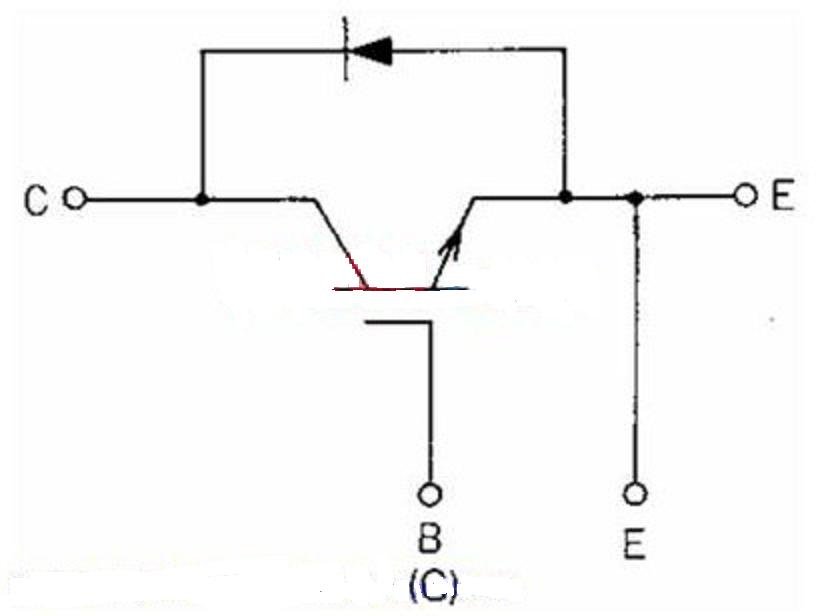

Diagrams
 |
