BTS555

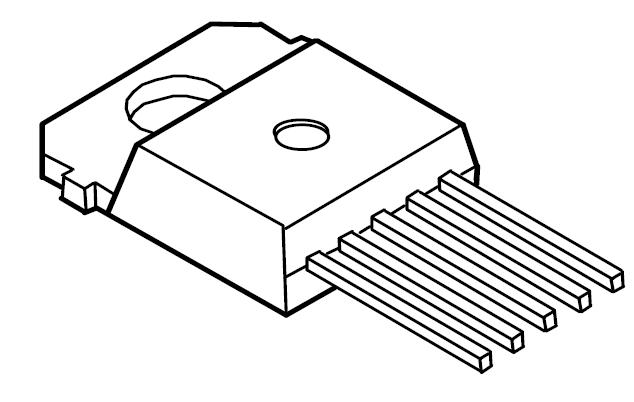

FET, TO-218-5, 40 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.50~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.50~6.00

PartNumber:: BTS555

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kendy Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-19

From Other Seller

Part Number:BTS555
US $4.50 - 6.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS555 is a N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. Providing embedded protective functions. The applications of the BTS555 include Power switch with current sense diagnostic feedback for 12 V and 24 V DC grounded loads, Most suitable for loads with high inrush current like lamps and motors; all types of resistive and inductive loads, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS555 absolute maximum ratings: (1)Supply voltage: 40 V; (2)Supply voltage for full short circuit protection, Tj,start = -40 to +150℃: 34 V; (3)Load current: self-limited A; (4)Load dump protection VLoadDump =UA +Vs, UA =13.5V, RI =2Ω, RL =0.1Ω, td =200ms, IN, IS= open or grounded; (5)VLoad dump: 80 V; (6)Operating temperature range: -40 to +150 ℃; (7)Storage temperature range: -55 to +150 ℃; (8)Power dissipation (DC), TC ≤ 25 ℃: 360 W; (9)Inductive load switch-off energy dissipation, single pulse Vbb =12V, Tj,start =150°C, TC = 150°C const., IL = 20 A, ZL = 15 mH, 0 Ω: 3 J; (10)Electrostatic discharge capability (ESD): 4.0 kV; (11)Current through input pin (DC): +15, -250 mA; (12)Current through current sense status pin (DC): +15, -250 mA.

Features

BTS555 features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Overtemperature protection; (5)Overvoltage protection (including load dump); (6)Clamp of negative voltage at output; (7)Fast deenergizing of inductive loads; (8)Low ohmic inverse current operation; (9)Diagnostic feedback with load current sense; (10)Open load detection via current sense; (11)Loss of Vbb protection; (12)Electrostatic discharge (ESD) protection.
