Product Summary
The CY62148VLL-70ZI is a high-performance CMOS static RAM organized as 524,288 words by 8 bits. This device features advanced circuit design to provide ultra-low active current. It is ideal for providing More Battery Life(MoBL) in portable applications such as cellular telephones. The CY62148VLL-70ZI also has an automatic power-down feature that significantly reduces power consumption by 99% when addresses are not toggling.
Parametrics
CY62148VLL-70ZI absolute maxing ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: 55℃ to +125℃; (3)Supply Voltage to Ground Potential: -0.5V to +4.6V; (4)DC Voltage Applied to Outputs in High Z State: -0.5V to VCC + 0.5V; (5)DC Input Voltage: -0.5V to VCC +0.5V; (6)Output Current into Outputs (LOW): 20mA; (7)Static Discharge Voltage(per MIL-STD-883, Method 3015): >2001V; (8)Latch-Up Current: >200mA.
Features
CY62148VLL-70ZI features: (1)Low voltage range: 2.7V-3.6V; (2)Ultra low active power; (3)Low standby power; (4)TTL-compatible inputs and outputs; (5)Automatic power-down when deselected; (6)CMOS for optimum speed/power.

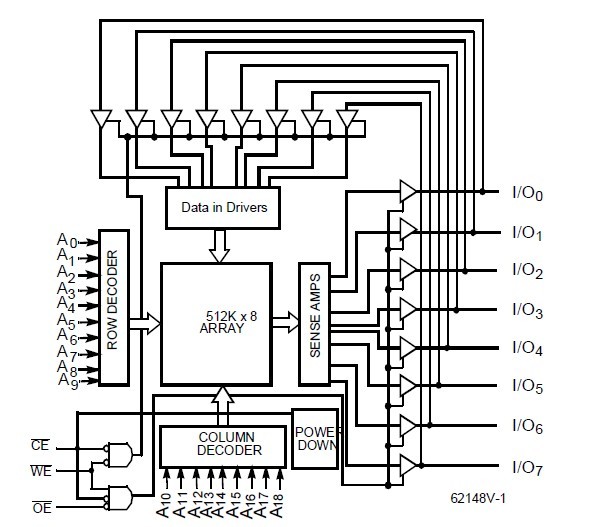

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY62148VLL-70ZI |
Other |
|
Data Sheet |
Negotiable |
|
||||
