EM4095

chip, VSS+6V, SOP16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~1.80

PartNumber:: EM4095

Brand:: EM Microelectronic - MARIN SA - EM | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kendy Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-19

From Other Seller

Part Number:EM4095
US $1.20 - 1.80
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

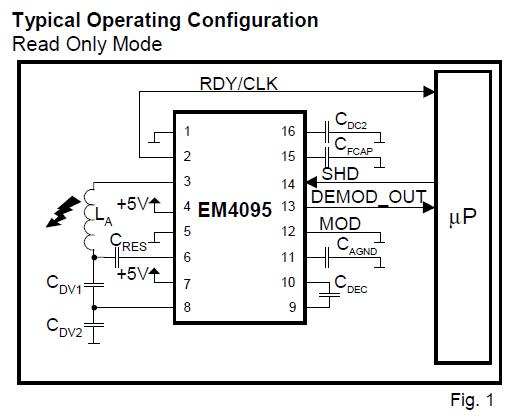

The EM4095 (previously named P4095) chip is a CMOS integrated transceiver circuit intended for use in an RFID basestation to perform the following functions: antenna driving with carrier frequency, AM modulation of the field for writable transponder, AM demodulation of the antenna signal modulation induced by the transponder. The applications of the EM4095 include Car immobiliser, Hand held reader, Low cost reader.

Parametrics

EM4095 absolute maximum ratings: (1)Storage temperature: -55 to +150℃; (2)Maximum voltage at VDD: VSS+6V; (3)Minimum voltage at VDD: VSS -0.3V; (4)Max. voltage other pads: VDD +0.3V; (5)Min. voltage other pads: VSS -0.3V; (6)Max. junction temperature: +125℃; (7)Electrostatic discharge max. to MIL-STD-883C method 3015 against VSS: 4000V; (8)Electrostatic discharge max. to MIL-STD-883C method 3015 (only for pins ANT1 and ANT2) against VSS: 10000V; (9)Maximum Input/Output current on all pads except VDD, VSS, DVDD, DVSS, ANT1, ANT2, RDY/CLK: 10mA; (10)Maximum AC peak current on ANT1 and ANT2 pads 100 kHz duty cycle 50%: 300mA.

Features

EM4095 features: (1)Integrated PLL system to achieve self adaptive carrier frequency to antenna resonant frequency; (2)No external quartz required; (3)100 to 150 kHz carrier frequency range; (4)Direct antenna driving using bridge drivers; (5)Data transmission by OOK (100% Amplitude Modulation) using bridge driver; (6)Data transmission by Amplitude Modulation with externally adjustable modulation index using single ended driver; (7)Multiple transponder protocol compatibility (Ex: EM400X, EM4050, EM4150, EM4070, EM4170, EM4069….); (8)Sleep mode 1μA; (9)USB compatible power supply range; (10)40 to +85℃ temperature range; (11)Small outline plastic package SO16.
