Product Summary

The G5V-1-5VDC is an Ultra-miniature, Highly Sensitive SPDT Relay for Signal Circuits.

Parametrics

G5V-1-5VDC absolute maximum ratings: (1)Contact resistance: 100 mΩ max.; (2)Operate time: 5 ms max. (mean value: approx. 2.50 ms); (3)Release time: 5 ms max. (mean value: approx. 0.90 ms); (4)Operating frequency (max.): Mechanical: 36,000 operations/hour, Electrical: 1,800 operations/hour; (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC between coil and contacts, at 250 VDC between contacts of same polarity); (6)Dielectric strength: 1,000 VAC, 50/60 Hz for 1 minute between coil and contacts 400 VAC, 50/60 Hz for 1 minute between contacts of same polarity; (7)Impulse withstand voltage: 1,500 V (10 X 160 μs) between coil and contacts (conforms to FCC Part 68); (8)Vibration: Mechanical durability: 10 to 55 Hz, 3.30 mm double amplitude; (9)Shock Mechanical durability: 1,000 m/s2 (approx. 100G); (10)Malfunction durability: 100 m/s2 (approx. 10 G); (11)Ambient temperature: -40℃ to 70℃.

Features

G5V-1-5VDC features: (1)High sensitivity: 150 mW nominal power consumption; (2)Small size at 10 H x 7.5 W x 12.5 L mm; (3)Switches from 1 mA to 1 A; (4)Conforms to FCC part 68 requirements for coil to contacts; (5)Fully-sealed construction; (6)Ideal for use in telecommunications, security, and computer/peripheral equipment; (7)RoHS Compliant.

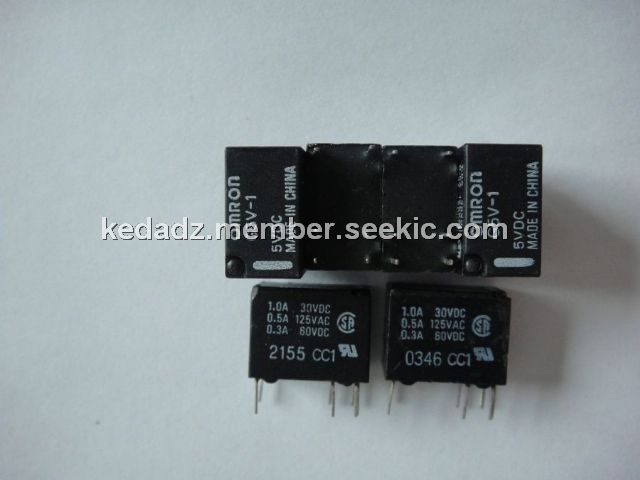

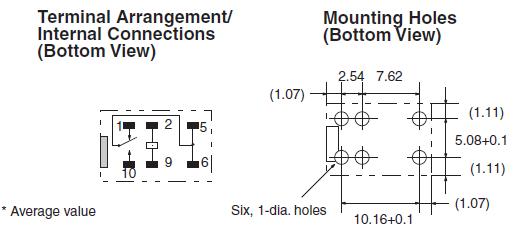

Diagrams

G5V-1-2 DC12
G5V-1-2 DC12

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 12DC 150mW Seal

Data Sheet
