Product Summary

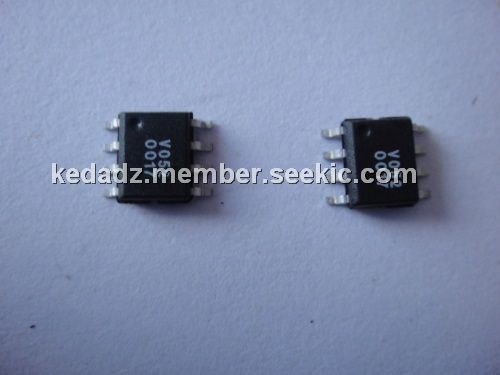

The IVA-05208 is a variable gain amplifier housed in a miniature low cost plastic surface mount package. The IVA-05208 can be used
in any combination of singleended or differential inputs or outputs. The lowest frequency of operation is limited only by the values of user selected blocking and bypass capacitors. Typical applications of the IVA-05208 include variable gain amplification for fiber optic systems (e.g., SONET) with data rates up to 2.0 Gb/s, mobile radio and satellite receivers, millimeter wave receiver IF amplifiers and communication receivers.
Parametrics
IVA-05208 absolute maximum ratings: (1)Device Voltage: 8 V; (2)Power Dissipation: 600 mW; (3)Input Power: +14 dBm; (4)Vgc-Vee: 7 V; (5)Junction Temperature: 150 ℃; (6)Storage Temperature: -65 to 150 ℃.
Features
IVA-05208 features: (1)Differential Input and Output Capability; (2)DC to 1.5 GHz Bandwidth; 2.0 Gb/s Data Rates; (3)High Gain: 30 dB Typical; (4)Wide Gain Control Range: 30 dB Typical; (5)5 V Bias; (6)5 V Vgc Control Voltage, Igc < 3 mA; (7)Fast Gain Control Response: < 10 ns Typical; (8)Low Cost Plastic Surface Mount Package.

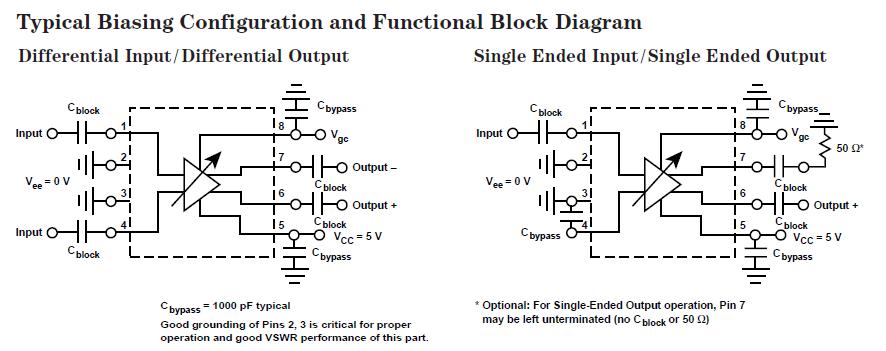

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IVA-05208 |
Other |
|
Data Sheet |
Negotiable |
|
||||
