Product Summary

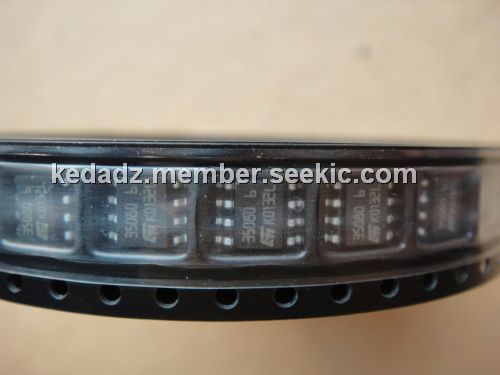

The M35080MN6 is an 8 Kbit Serial SPI Bus EEPROM With Incremental Registers. The M35080MN6 consists of 1024x8 bits of low power EEPROM, fabricated with STMicroelectronics’ proprietary High Endurance Double Polysilicon CMOS technology. The device is accessed by a simple SPI-compatible serial interface. The bus signals consist of a serial clock input (C), a serial data input (D) and a serial data output (Q). The M35080MN6 is selected when the chip select input (S) is held low.
Parametrics
M35080MN6 absolute maximum ratings: (1)TA, Ambient Operating Temperature: -40 to 125℃; (2)TSTG, Storage Temperature: -65 to 150℃; (3)TLEAD, Lead Temperature during Soldering: 260℃; (4)VO, Output Voltage Range: -0.3 to VCC+0.6 V; (5)VI, Input Voltage Range: -0.3 to 6.5 V; (6)VCC, Supply Voltage Range: -0.3 to 6.5 V; (7)VESD, Electrostatic Discharge Voltage Human Body model: 4000 V; (8)Electrostatic Discharge Voltage Machine model: 400 V.
Features
M35080MN6 features: (1)Compatible with SPI Bus Serial Interface (Positive Clock SPI Modes); (2)Single Supply Voltage: 4.5 V to 5.5 V; (3)5 MHz Clock Rate (maximum); (4)Sixteen 16-bit Incremental Registers; (5)BYTE and PAGE WRITE (up to 32 Bytes)(except for the Incremental Registers); (6)Self-Timed Programming Cycle; (7)Hardware Protection of the Status Register; (8)Resizeable Read-Only EEPROM Area; (9)Enhanced ESD Protection; (10)1 Million Erase/Write Cycles (minimum); (11)40 Year Data Retention (minimum).

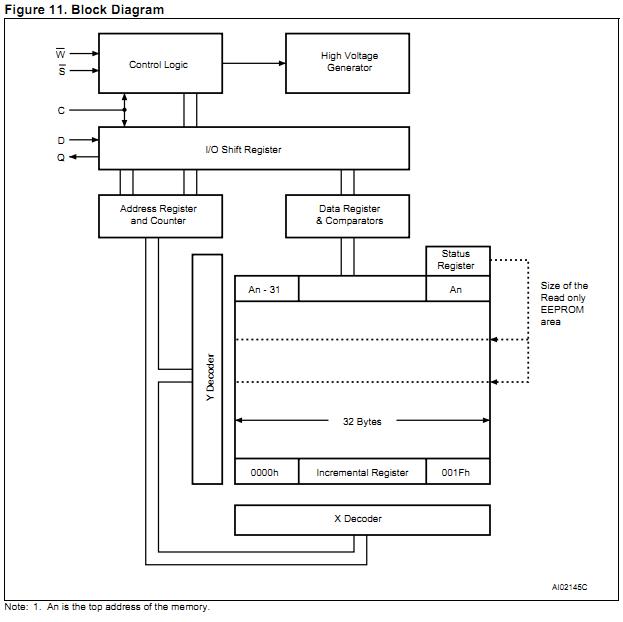

Diagrams
 |
