Product Summary

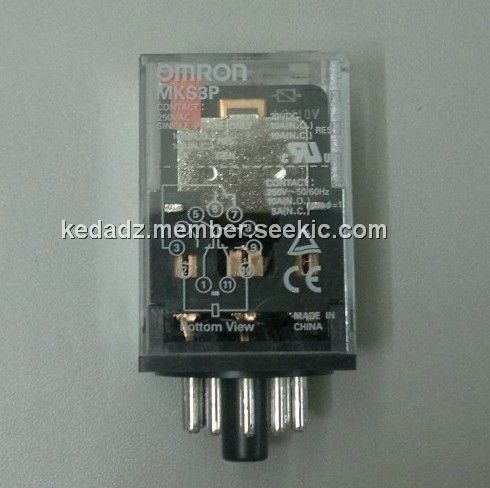

The MKS3P is a General-purpose Relay.

Parametrics

MKS3P general specifications: (1)Rated carry current: 10 A; (2)Max. switching voltage: 250 VAC, 250 VDC; (3)Max. switching current: 10 A; (4)Contact resistance: 100 mΩ max.; (5)Release time: 20 ms max.

Features

MKS3P features: (1)Same mounting and internal wiring as the previous Super MK Relays; (2)Built-in mechanical indicator enables checking contact operation; (3)Two modes can be used to check circuits for models with latching lever; (4)Nameplate provided on models with latching lever; (5)All materials are RoHS compliant; (6)UL and IEC (TuV) certification.

Diagrams

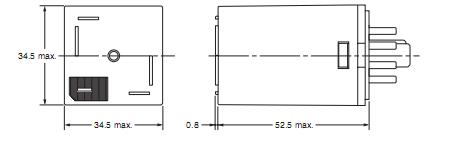

MKS3P package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MKS3P AC120
MKS3P AC120
Omron Industrial
General Purpose / Industrial Relays MKS Relay
Data Sheet
0-1: $6.26
1-5: $6.13
5-10: $5.91
10-25: $5.71
MKS3P AC220
MKS3P AC220
Omron Industrial
General Purpose / Industrial Relays MKS Relay
Data Sheet
0-1: $8.01
1-5: $7.83
5-10: $7.57
10-25: $7.29
MKS3P AC24
MKS3P AC24
Omron Industrial
General Purpose / Industrial Relays MKS Relay
Data Sheet
0-1: $5.22
1-5: $5.11
5-10: $4.93
10-25: $4.75
MKS3P DC110
MKS3P DC110
Omron Industrial
General Purpose / Industrial Relays MKS Relay
Data Sheet
0-1: $6.61
1-5: $6.47
5-10: $6.25
10-25: $6.02
MKS3P DC24
MKS3P DC24
Omron Industrial
General Purpose / Industrial Relays MKS Relay
Data Sheet
0-1: $5.92
1-5: $5.78
5-10: $5.59
10-25: $5.39
MKS3P1-D-5 DC24
MKS3P1-D-5 DC24
Omron Industrial
General Purpose / Industrial Relays Octal GP 3PDT r coil pol diode
Data Sheet
0-1: $6.61
1-5: $6.47
5-10: $6.25
10-25: $6.02
MKS3P-2 AC110
MKS3P-2 AC110
Omron Industrial
General Purpose / Industrial Relays MKS Relay
Data Sheet
0-1: $7.31
1-5: $7.15
5-10: $6.90
10-25: $6.65
MKS3P-2 AC220
MKS3P-2 AC220
Omron Industrial
General Purpose / Industrial Relays MKS Relay
Data Sheet
0-1: $7.31
1-5: $7.15
5-10: $6.90
10-25: $6.65
