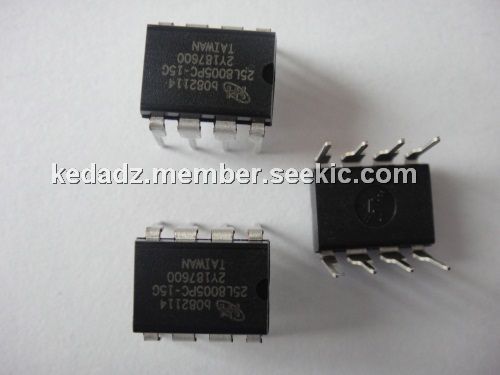

Product Summary

The MX25L8005PC-15G is a CMOS 8,388,608 bit serial Flash memory, which is configured as 1,048,576 x 8 internally. The MX25L8005PC-15G feature is a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). SPI access to the device is enabled by CS# input. The MX25L8005PC-15G provides sequential read operation on whole chip.

Parametrics

MX25L8005PC-15G absolute maximum ratings: (1)Ambient Operating Temperature: -40℃ to 85℃ for Industrial grade, 0℃ to 70℃ for Commercial grade; (2)Storage Temperature: -55℃ to 125℃; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V.

Features

MX25L8005PC-15G features: (1)Serial Peripheral Interface (SPI) compatible: Mode 0 and Mode 3; (2)8,388,608 x 1 bit structure; (3)256 Equal Sectors with 4K byte each: Any Sector can be erased individually; (4)16 Equal Blocks with 64K byte each: Any Block can be erased individually; (5)Single Power Supply Operation: 2.7 to 3.6 volt for read, erase, and program operations; (6)Latch-up protected to 100mA from -1V to Vcc +1V; (7)Low Vcc write inhibit is from 1.5V to 2.5V.

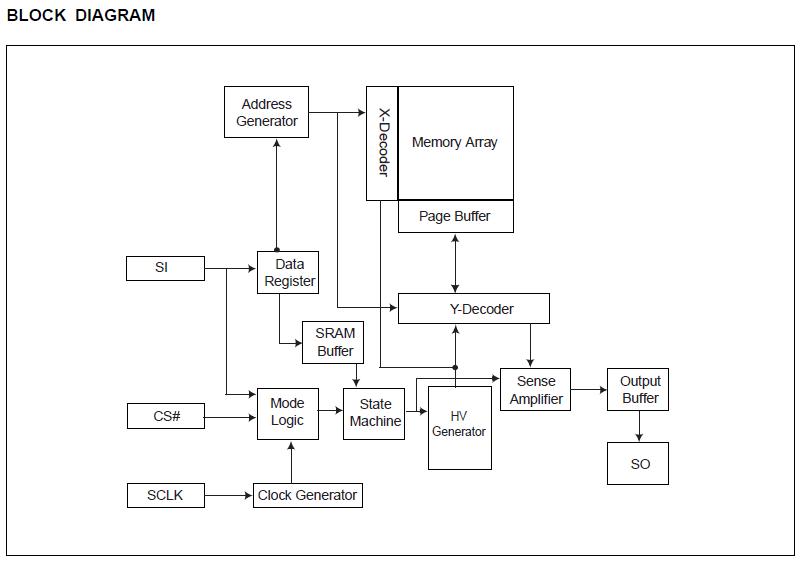

Diagrams
