Product Summary

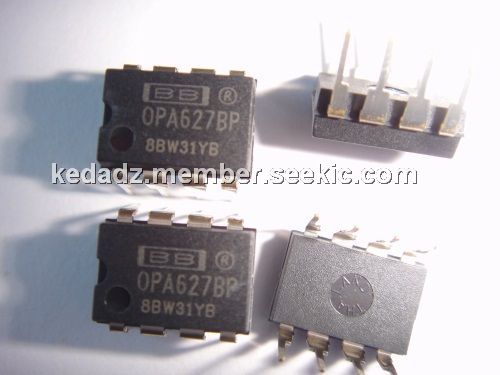

The OPA627BP Difet operational amplifier provides a new level of performance in a precision FET op amp. When compared to the popular OPA111 op amp, the OPA627BP has lower noise, lower offset voltage, and much higher speed. It is useful in a broad range of precision and high speed analog circuitry. The applications of the OPA627BP include precision instrumentation, fast data acquisition, DAC output amplifier, optoelectronics, sonar, ultrasound, high-impedance sensor AMPS, high-performance audio circuitry, active filters.

Parametrics

OPA627BP absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Input Voltage Range: +VS + 2V to –VS – 2V; (3)Differential Input Range: Total VS + 4V; (4)Power Dissipation: 1000mW; (5)Operating Temperature: M Package: –55℃ to +125℃, P, U Package: –40℃ to +125℃; (6)Storage Temperature: M Package: –65℃ to +150℃, P, U Package: –40℃ to +125℃; (7)Junction Temperature: M Package: +175℃, P, U Package: +150℃; (8)Lead Temperature (soldering, 10s): +300℃; (9)SOlC (soldering, 3s): +260℃.

Features

OPA627BP features: (1)very low noise: 4.5nV/√Hz at 10kHz; (2)fast settling time: 550ns to 0.01%; (3)LOW VOS: 100μV max; (4)LOW DRIFT: 0.8μV/℃ max; (5)LOW IB: 5pA max; (6)Unity-Gain Stable.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
OPA627BP
OPA627BP

Texas Instruments

High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp

Data Sheet

0-1: $16.30
1-10: $15.34
10-25: $14.37
25-50: $14.09
OPA627BPG4
OPA627BPG4

Texas Instruments

High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp

Data Sheet

0-34: $14.37
34-50: $14.09
50-100: $12.86
100-250: $12.69
