Product Summary
The PC87570-ICC/VPC is a highly integrated embedded RISC-based controller optimized for power management(PM), keyboard and mouse (KBC)and system control in portable Personal Computer (PC) applications. The PC87570-ICC/VPC highly efficient architecture and its on-chip peripherals, supporting functions and low power consumption, provide a highly integrated solution for portable notebook PCs, sub-notebook PCs and other portable devices.
Parametrics
PC87570-ICC/VPC absolute maxing ratings: (1)Supply Voltage VCC: min=-0.5V max=6.5V; (2)Input Voltage VI: min=-0.5V max=7.0V; (3)Output Voltage VO: min=-0.5V max=VCC+0.5V; (4)Storage Temperature TSTG: min=-65℃ max=+165℃; (5)Power Dissipation PD: max=1W; (6)Lead Temperature Soldering (10 sec) TL: max=+260℃; (7)ESD Tolerance CZAP=100pF RZAP=1.5KΩ1: min=2000V.
Features
PC87570-ICC/VPC features: (1)Shared BIOS memory; (2)Fully ACPI-compliant embedded controller; (3)Proprietary PS/2 shift mechanism; (4)Extremely low current consumption in Idle mode; (5)Support for a variety of off-chip wake-up sources; (6)Scalable design for growth without controller upgrade.

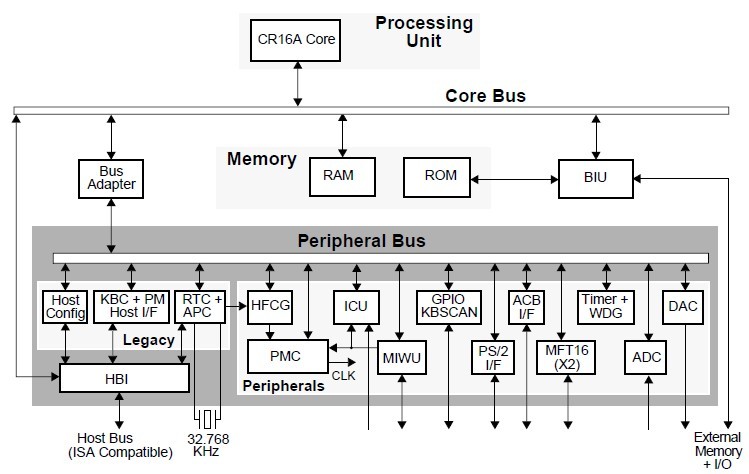

Diagrams
 |
