Product Summary

The PCD-112D1MH is a 15 Amp Low Profile Power PC Board Relay.

Parametrics

PCD-112D1MH absolute maximum ratings: (1)Ratings: 15A @ 125VAC resistive (PCDF only, load must be carried through QC terminals to achieve this rating), 10A @ 250VAC resistive, 10A @ 24VDC resistive. 5A @ 125VAC inductive (cosφ 0.4, L/R=7msec), 5A @ 24VDC inductive (cosφ 0.4, L/R=7msec); (2)Max. Switched Voltage: AC: 250V, DC: 24V; (3)Max. Switched Current: 15A; (4)Max. Switched Power: 1,800VA, 240W.

Features

PCD-112D1MH features: (1)Low profile (10mm), 15 Amp switching capacity; (2)1 Form A contact arrangement; (3)Sensitive 200mW coil (250mW on 48VDC coil); (4)Immersion cleanable, sealed version available; (5)Quick connect terminals available (PCDF).

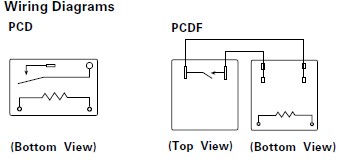

Diagrams
