Product Summary

The PL2303HX operates as a bridge between one USB port and one standard RS232 Serial port. The two large on-chip buffers accommodate data flow from two different buses. The USB bulk-type data is adopted for maximum data transfer. Automatic handshake is supported at the Serial port. With these, a much higher baud rate can be achieved compared to the legacy UART controller. The PL2303HX is also compliant with USB power management and remote wakeup scheme. Only minimum power is consumed from the host during Suspend. By integrating all the function in a SOIC-28 package, this chip is suitable for cable embedding. Users just simply hook the cable into PC or hub’s USB port, and then they can connect to any RS-232 devices.

Parametrics

PL2303HX absolute maximum ratings: (1)Power Supply Voltage: -0.3 to 6.0 V; (2)Input Voltage: -0.3 to VDD+0.3 V; (3)Output Voltage: -0.3 to VDD+0.3 V; (4)Storage Temperature: -55 to 150 ℃.

Features

PL2303HX features: (1)Full compliance with the USB Specification v1.1 and USB CDC v1.1; (2)Support the RS232 Serial interface; (3)Support automatic handshake mode; (4)Support Remote wake-up and power management; (5)256 bytes buffer each for upstream and downstream data flow; (6)Support default ROM or external EEPROM for device configuration; (7)On chip USB transceiver; (8)On chip crystal oscillator running at 12M Hz; (9)Supports Windows 98/SE, ME, 2000, XP, Windows CE3.0, CE .NET, Linux, and Mac OS; (10)28 Pins SOIC package.

Diagrams

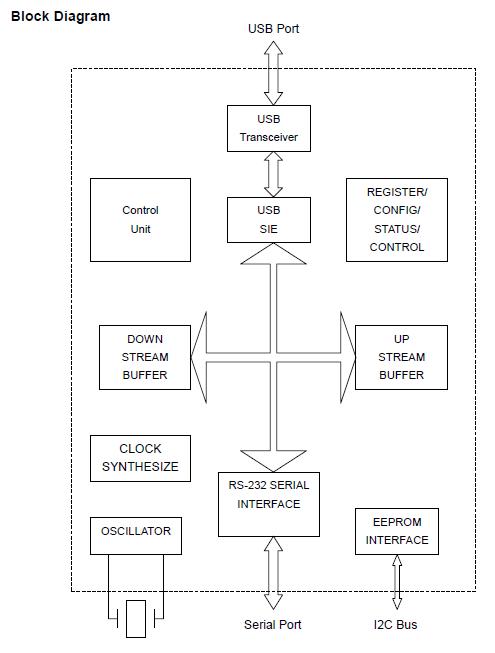

PL230200CC
PL230200CC
Vishay/Dale

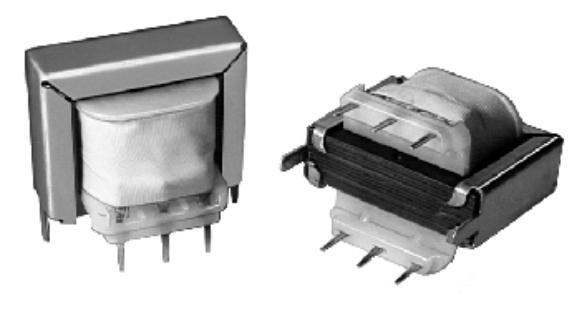

Power Transformers 5v/10vct 880mA/440mA
