Product Summary
The TC4069UBP is a HEX inverter. The TC4069UBP contains six circuits of inverters. Since the internal circuit is composed of a single stage inverter, this is suitable for the applications of CR oscillator circuits, crystal oscillator circuits and linear amplifiers in addition to its application as inverters. Because of one stage gate configuration, the propagation time has been reduced.
Parametrics
TC4069UBP absolute maximum ratings: (1)DC supply voltage VDD VSS -0.5 to VSS + 20 V; (2)Input voltage VIN VSS -0.5 to + 0.5 V; (3)Output voltage VOUT VSS -0.5 to + 0.5 V; (4)DC input current IIN ±10 mA; (5)Power dissipation PD 300 (DIP)/180 (SOIC) mW; (6)Operating temperature range Topr -40 to 85 ℃; (7)Storage temperature range Tstg -65 to 150 ℃.
Features
TC4069UBP features: (1)Output transition time(low to high) tTLH 70ns typ 200ns max; (2)Output transition time(high to low)tTHL 70ns typ 200ns max; (3)Propagation delay time(low to high) tpLH 55ns typ 110ns max; (4)Propagation delay time(high to low)tpHL 55ns typ 110ns max; (5)Input capacitance CIN 7.5pF typ 15 pF max.

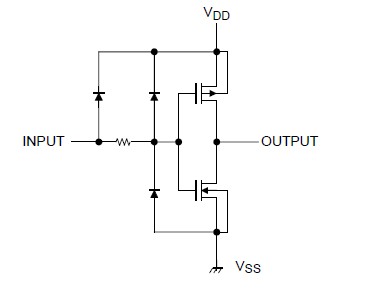

Diagrams
