Product Summary

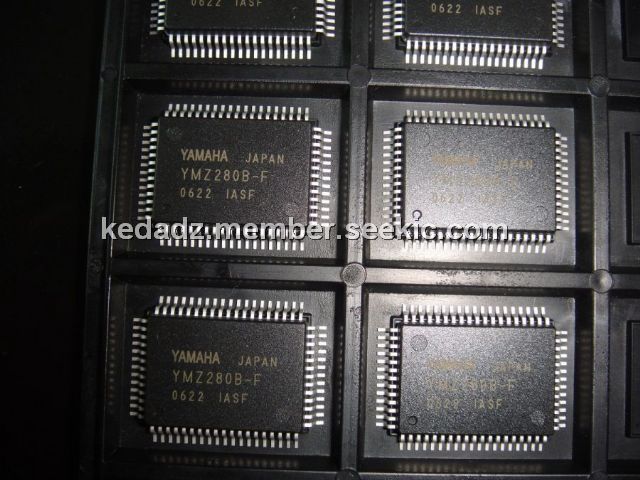

The YMZ280B-F is designed as one kind of 8-channel PCM/ADPCM decoder. We have successfully packaged in a single chip features like PCM / ADPCM record and playback, MIDI communications, and a general purpose game port. This device is now possible to create a compact, personal computer based sound system by combining it with the YM3812 and the YMF262.
Parametrics
Absolute maximum ratings: (1)power supply voltage: -0.5V to +7.0V;(2)input voltage: -0.5V to VDD+0.5V;(3)operating temperature: 0鈩?to 70鈩?(4)storage temperature: -50鈩?to +125鈩?
Features
Features: (1)selectable PCM / ADPCM modes;(2)two built-in recording and playback channels;(3)PCM has 8-bit or 12-bit resolution, ADPCM compresses 12-bit data into 4-bits;(4)built-in 12-bit floating A/D and D/A converters for record and playback;(5)2-channel and double over-sampling A/D conversion;(6)UART for sending and receiving data that meets MIDI standards;(7)separate built-in 16-byte FIFO buffers for sending and for receiving;(8)eight input ports for interfacing joysticks, etc.;(9)three built-in timers;(10)built-in address decoder.
Diagrams
<IMG src="http://www.seekic.com/uploadfile/ic-mfg/2011552958995.jpg" border=0>
 |
