Product Summary

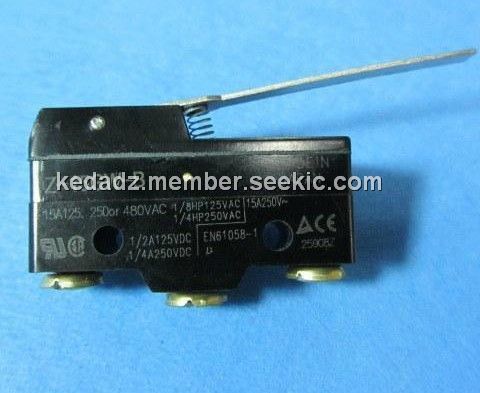

The Z-15GW-B is a General-purpose Basic Switch.

Parametrics

Z-15GW-B general specifications: (1)Circuit: SPDT; (2)Switch Function: On-Mom; (3)Contact Rating @ Voltage: 15A @ 125VAC; (4)Actuator Type: Lever, Straight; (5)Mounting Type: Chassis Mount; (6)Termination Style: Screw Terminal; (7)Operating Force: 70gf.

Features

Z-15GW-B features: (1)A large switching capacity of 15 A with high repeat accuracy; (2)A wide range of variations in contact form for your selection: basic, split-contact and maintained-contact; (3)A series of standard models for micro loads is available; (4)A series of molded terminal-type models incorporating safety terminal protective cover is available.

Diagrams

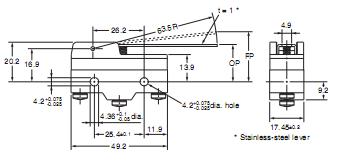

Z-15GW-B block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
Z-15GW-B
Z-15GW-B


SWITCH 15A LEVER LOW FORCE

Data Sheet

0-1: $8.39
1-25: $7.55
25-50: $6.71
50-100: $6.04
100-250: $5.70
250-500: $5.03
500-1000: $4.53
Z-15GW-B7-K
Z-15GW-B7-K

Omron Industrial

Basic / Snap Action / Limit Switches Hinge lever 70gf 15A screw terminals

Data Sheet

0-1: $7.31
1-25: $6.58
25-50: $5.84
50-100: $5.26
Z-15GW-BT
Z-15GW-BT


BASIC SWITCH

Data Sheet

0-1: $26.71
