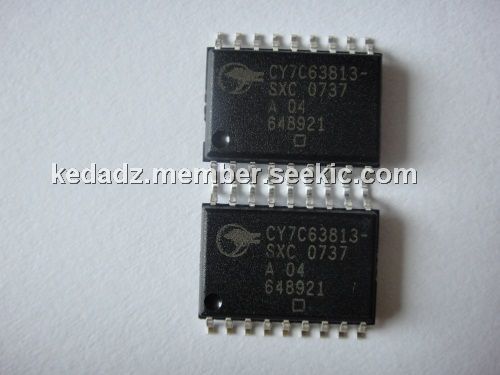

CY7C63813-SXC

microcontroller, SOP18, –0.5V to +7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~1.50

PartNumber:: CY7C63813-SXC

Brand:: Cypress Semiconductor - Cypress | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kendy Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-19

From Other Seller

Part Number:CY7C63813-SXC
US $0.70 - 1.50
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CY7C63813-SXC enCoRe II is an 8-bit Flash programmable microcontroller with an integrated low-speed USB interface. The instruction set is optimized specifically for USB and PS/2 operations, although the microcontrollers may be used for a variety of other embedded applications. The applications of the CY7C63813-SXC include PC HID devices, Gaming, General purpose.

Parametrics

CY7C63813-SXC absolute maximum ratings: (1)Storage Temperature: –40℃ to +90℃; (2)Ambient Temperature with Power Applied: –0℃ to +70℃; (3)Supply Voltage on VCC Relative to VSS: –0.5V to +7.0V; (4)DC Input Voltage: –0.5V to + VCC + 0.5V; (5)DC Voltage Applied to Outputs in High-Z State: –0.5V to + VCC + 0.5V; (6)Maximum Total Sink Current into Port 0 and Port 1 pins: 70 mA; (7)Maximum Total Source Output Current into GPIO Pins: 30 mA; (8)Maximum On-chip Power Dissipation on any GPIO Pin: 50 mW; (9)Power Dissipation: 300 mW; (10)Static Discharge Voltage: 2200V; (11)Latch-up Current: 200 mA.

Features

CY7C63813-SXC features: (1)USB 2.0-USB-IF certified (TID # 40000085); (2)enCoRe II USB - "enhanced Component Reduction": Crystalless oscillator with support for an external clock. The internal oscillator eliminates the need for an external crystal or resonator, Two internal 3.3V regulators and an internal USB pull up resistor, Configurable IO for real world interface without external components; (3)USB Specification Compliance: Conforms to USB Specification, Version 2.0, Conforms to USB HID Specification, Version 1.1, Supports one Low-Speed USB device address, Supports one control endpoint and two data endpoints, Integrated USB transceiver with dedicated 3.3V regulator for USB signalling and D– pull up.
