Product Summary

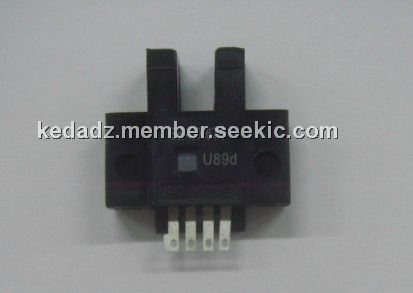

The EE-SX670 is a photomicrosensor. Application include detection of Lead Frame Position.

Parametrics

EE-SX670 absolute maximum ratings: (1)Sensing distance:5mm (slot width); (2)Standard sensing object Opaque: 2×0.8 mm min.; (3)Differential travel:0.025mm; (4)Light source (peak wave length):GaAs infrared LED (940nm); (5)Receiver: Si phototransistor with a sensing wavelength of 850nm max.; (6)Operation indicator (see note 1): Operation indicator (red) lit with incident (Models with a suffix of“A”or“R”have Dark-ON indicators.); (7)Power supply voltage:5to24 VDC±10%, ripple (p-p): 10% max; (8)Current consumption: 35mA max. (NPN), 30 mA max. (PNP); (9)Control output: for NPN open collector output models, at 5 to 24 VDC is 100-mA load current (IC) with a residual voltage of 0.8 V max and 40-mA load current (IC) with a residual voltage of 0.4 V max.for PNP open collector output models, at 5 to 24 VDC is 50-mA load current (IC) with a residual voltage of 1.3 V max.; (10)Response frequency(see note 2):1 kHz max. (3 kHz average)

Features

EE-SX670 features:(1)PNP output models newly added; (2)Standard, L-shaped, T-shaped, and Close-mounting: Five series of models available; (3)Select from thirty output variations, including Light-ON or Dark-ON/Light-ON (selectable) models; (4)Response frequency as high as 1 kHz; (5)Easy operation monitoring with bright light indicator; (6)Wide operating voltage range from 5 to 24 VDC; (7)Models with operation indicators that are lit when sensing objects are detected (when light is interrupted) are available.

Diagrams

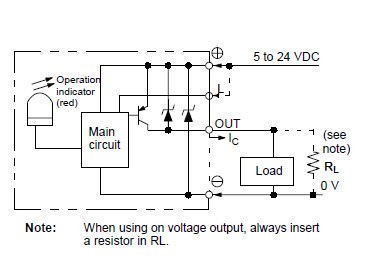

EE-SX670 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EE-SX670
EE-SX670
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output TRNS LIGHT-ON/DRK-ON
Data Sheet
0-1: $12.85
1-25: $11.42
25-50: $10.89
50-100: $10.36
EE-SX670A
EE-SX670A
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output TRNS LIGHT-ON/DRK-ON
Data Sheet
0-1: $12.90
1-2: $12.68
2-5: $11.92
5-10: $11.69
EE-SX670P
EE-SX670P
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output 5 mm Slot L/D-On PNP
Data Sheet
0-1: $12.90
1-25: $12.23
25-50: $11.41
50-100: $10.88
EE-SX670B
EE-SX670B
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output SLOT PMS NO LIG HT INDICATOR
Data Sheet
0-1: $12.25
1-5: $11.98
5-10: $11.56
10-25: $11.15
EE-SX670-C1J-R 0.1M
EE-SX670-C1J-R 0.1M
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output 5mm SLOT STD L/D-O NPN CON
Data Sheet
Negotiable
EE-SX670P-C1J-R 0.1M
EE-SX670P-C1J-R 0.1M

OPTO SENSOR STD 5MM PNP ON
Data Sheet
0-1: $29.15
EE-SX670R
EE-SX670R
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output 5MM SLOT PMS L/D-ON PNP
Data Sheet
0-1: $13.75
1-5: $12.85
5-10: $12.44
10-20: $12.22
EE-SX670-WR 1M
EE-SX670-WR 1M
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output 5mm SLOT STD L/D-O NPN 1MC
Data Sheet
0-1: $26.24
1-25: $23.32
25-50: $20.99
50-100: $19.82
