Product Summary

The G6A-434P-12V is a low signal relay.

Parametrics

G6A-434P-12V maximum ratings: (1)Rated load: 0.50 A at 125 VAC, 2 A at 30 VDC; (2)Contact material: Ag (Au clad); (3)Carry current 3 A; (4)Max. operating voltage: 250 VAC, 220 VDC; (5)Max. operating current: 2 A; (6)Max. switching capacity 125 VA, 60 W; (7)Min. permissible load: 10 μA, 10 mVDC.

Features

G6A-434P-12V features: (1)High sensitivity can be driven by digital circuits; (2)Low-profile design allows use in 12.70 mm PC board rack; (3)Surge withstand voltage meets FCC Part 68 regulation; (4)Units can be mounted side by side due to low magnetic leakage; (5)Special models available for low thermoelectromotive force; (6)Unique moving loop (permanent magnet) armature reduces relay size, magnetic interference, and contact bounce time; (7)Single or dual coil winding types available; (8)RoHS Compliant.

Diagrams

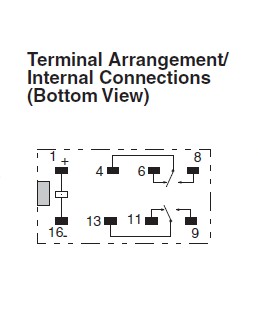

G6A-434P-12V Terminal Arrangement/Internal Connections
