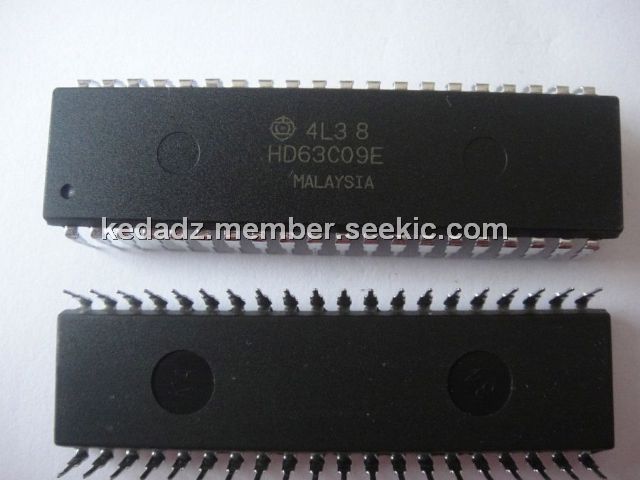

Product Summary
The HD63C09E is the highest 8-bit microprocessor of HMCS6800 family, which is compatible with the conventional HD6809. The HD63C09E has hardware and software features which make it an ideal processor for higher level language execution or standard controller applicantions. The HD63C09E is complete CMOS device and its power dissipation is ectremely low. Moreover, the SYNC and CWAI instruction makes low power applicantion possible.
Parametrics
HD63C09E absolute maximum ratings: (1)supply voltage: -0.3 to +7.0 V; (2)input voltage: -0.3 to +7.0 V; (3)amximum output current: 5 mA; (4)maximum total output current: 100 mA; (5)operating temperature: -20 to +75 ℃; (6)storage temperature: -65 to +150 ℃.
Features
HD63C09E features: (1)hardware: interfaces with all HMCS6800 peripherals, DMA transfer with no auto-refresh cycle; (2)software: object code compatible with the HD6809; (3)low power consumption mode: SYNC state of SYNC instruction, WAIT state of CWAI instruction; (4)on chip osillator; (5)wide operation range: f=0.5 to 3 MHz (VCC=5V±10%).

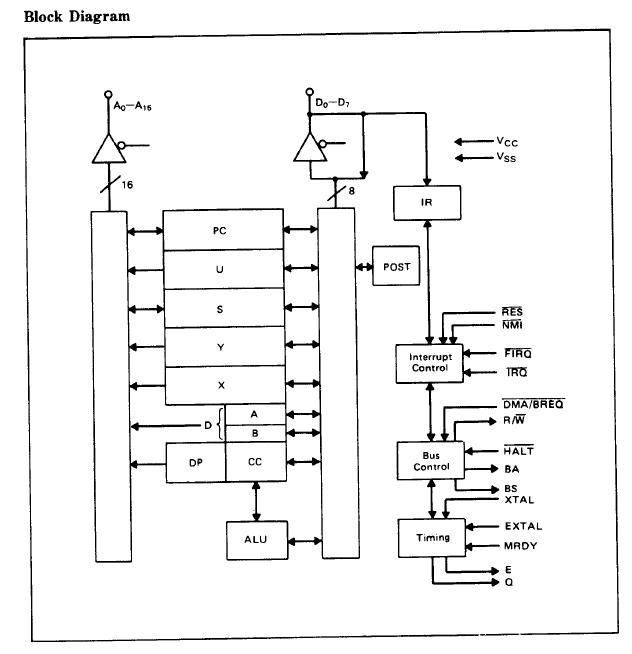

Diagrams
 |
