Product Summary

The LTV-845 is a LED.

Parametrics

LTV-845 absolute maximum ratings: (1)Forward Current: 50 mA; (2)Reverse Voltage: 6 V; (3)Power Dissipation: 70 mW; (4)Collector - Emitter Voltage: 35 V; (5)Emitter - Collector Voltage: 6 V; (6)Collector Current: 80 mA; (7)Collector Power Dissipation: 150 mW; (8)Total Power Dissipation: 200 mW; (9)Isolation Voltage: 5,000 Vrms; (10)Operating Temperature: -30 ~ +100 ℃; (11)Storage Temperature: -55 ~ +125 ℃; (12)Soldering Temperature: 260 ℃.

Features

LTV-845 features: (1)High current transfer ratio ( CTR : MIN. 600% at IF = 1mA, VCE = 2V ); (2)High input-output isolation voltage ( Viso = 5,000Vrms ); (3)Response time ( tr : TYP. 60μs at VCE = 2V, IC = 10mA, RL = 100Ω ); (4)Dual-in-line package: LTV-815 : 1-channel type, LTV-825 : 2-channel type, LTV-845 : 4-channel type; (5)Wide lead spacing package: LTV-815M : 1-channel type, LTV-825M : 2-channel type, LTV-845M : 4-channel type; (6)Surface mounting package: LTV-815S : 1-channel type, LTV-825S : 2-channel type, LTV-845S : 4-channel type; (7)Tape and reel packaging: LTV-815S-TA1, LTV-825S-TA1; (8)UL approved ( No. E113898 ); (9)TUV approved ( No. R9653630 ); (10)CSA approved ( No. CA91533-1 ); (11)FIMKO approved ( No. 193422-01 ); (12)NEMKO approved ( No. P96103013 ); (13)DEMKO approved ( No. 303986 ); (14)SEMKO approved ( No. 9646047 / 01-30 ); (15)VDE approved ( No. 094722 ).

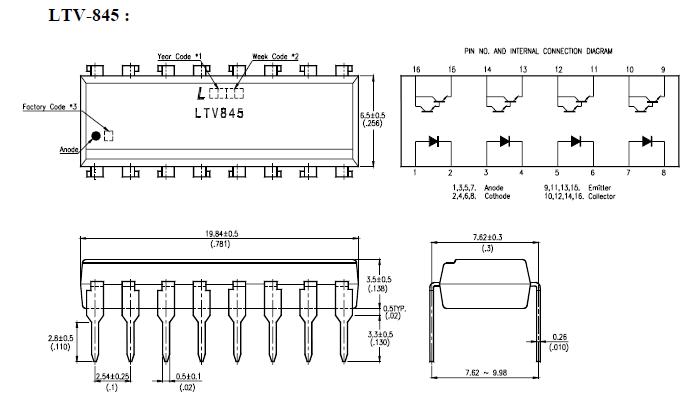

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

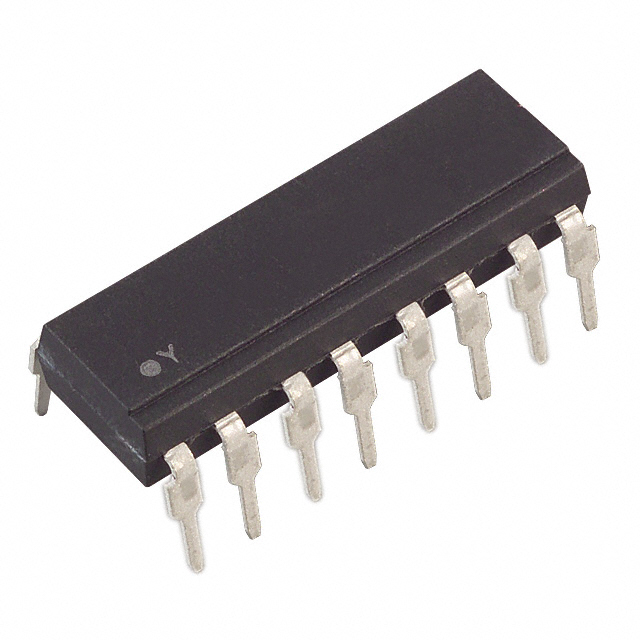

LTV-845
LTV-845
Lite-On
Transistor Output Optocouplers Optocoupler
Data Sheet
0-1: $0.53
1-10: $0.47
10-50: $0.43
50-100: $0.38

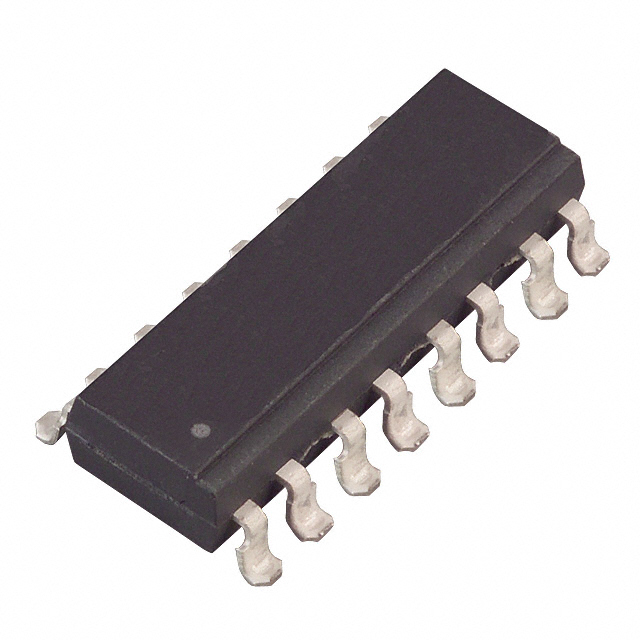

LTV-845S
LTV-845S
Lite-On
Transistor Output Optocouplers Optocoupler AC in 4-CHNL
Data Sheet
0-1: $0.53
1-10: $0.48
10-50: $0.43
50-100: $0.38
LTV-845S-TA1
LTV-845S-TA1

OPTOISOLATOR 4CH DARL OUT SMD
Data Sheet
Negotiable
LTV-845S-TA
LTV-845S-TA

OPTOISOLATOR 4CH DARL OUT SMD
Data Sheet
Negotiable
LTV-845M
LTV-845M

OPTOISOLATOR 4CH DARL OUT 16-DIP
Data Sheet
0-2000: $0.62
