Product Summary

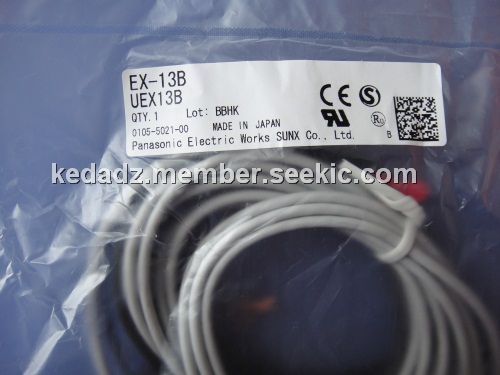

The EX-13B is an Ultra-slim Photoelectric Sensor.

Parametrics

EX-13B absolute maximum ratings: (1)Sensing range: 500 mm; (2)Min. sensing object: φ2 mm φ0.079 in opaque object; (3)Repeatability (perpendicular to sensing axis): 0.05 mm 0.002 in or less; (4)Supply voltage: 12 to 24 V DC±10 % Ripple P-P 10 % or less; (5)Current consumption: Emitter: 10 mA or less, Receiver: 15 mA or less; (6)Response time: 0.5 ms or less; (7)Operation indicator: Red LED (lights up when the output is ON).

Features

EX-13B features: (1)Space Saving - 10 mm (W) × 14.5 mm (H) × 3.5 mm (D); (2)Mountable with M3 Screws; (3)Background Suppression (EX-14); (4)Flexible Mounting - Front and Side Sensing; (5)Bright 2-Color Indicator; (6)NPN or PNP Types Available; (7)12 to 24 VDC; (8)Conforms to IP67 (IEC); (9)Response Time - 0.5 ms or Less; (10)Slit Plates Available for Minute Detection; (11)Flexible Cable for Moving Application Is Available; (12)MB Pig-Tail Style Quick-Disconnect Type Is Also Available.

Diagrams

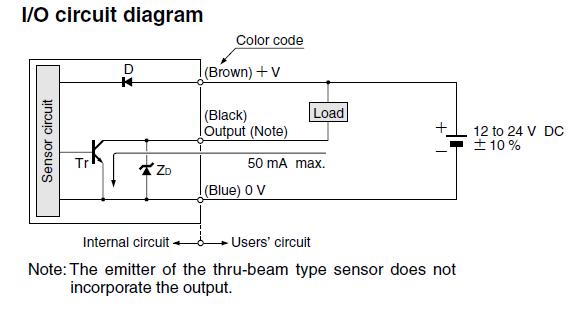

EX-13B I/O circuit diagram

EX-1
EX-1

OK Industries

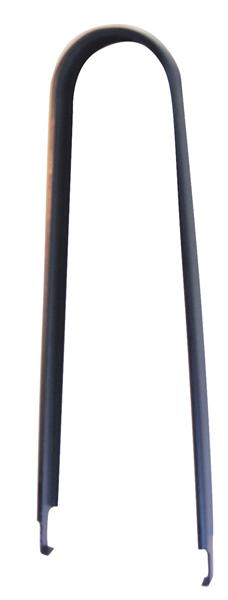

Pliers & Tweezers Extract TL 8-24 Pin
