Product Summary

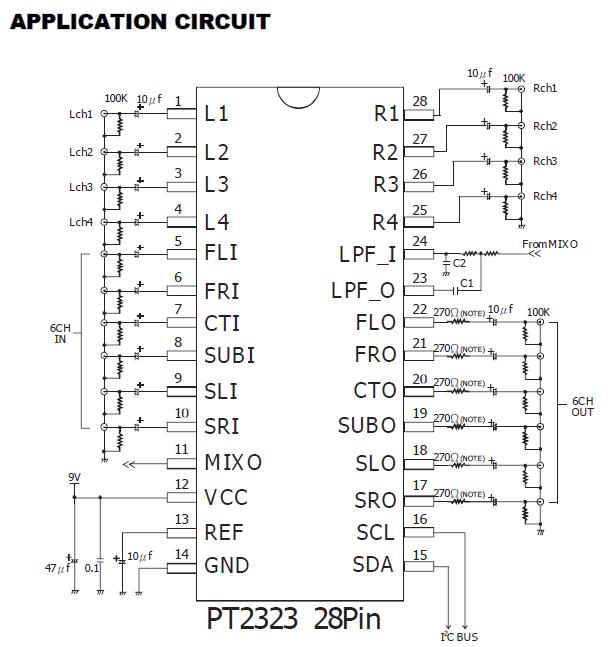

The PT2323-S is a 6-Channel Audio Selector utilizing CMOS Technology specially designed for Home Theater System. The PT2323-S provides a built-in 2-Channel to 6-Channel Translator, which can directly mix traditional stereo channel to simulate a 6-Channel audio output. Single power supply (9V), I2C Bus Interface as well as very low Total Harmonic Distortion (THD < 0.005%) and other features are incorporated into a single chip thereby providing very high performance. Pin assignments and application circuit are optimized for easy PCB layout and cost saving advantages. The applications of the PT2323-S include AV System, Mini Compo, Car Stereo, Multi-Media Audio Systems.

Features

PT2323-S features: (1)Supply Voltage: 9V; (2)4 Stereo Inputs; (3)One 6-Channel Input; (4)Maximum Input Voltage: 3.75Vrms (1kHz, THD<1%); (5)Low Total Harmonic Distortion, THD<0.005% (1kHz, 0.2Vrms); (6)Low Noise: No<4μVrms; (7)I2C Bus Interface; (8)Available in 28 Pins, DIP or SOP Package.
