Product Summary

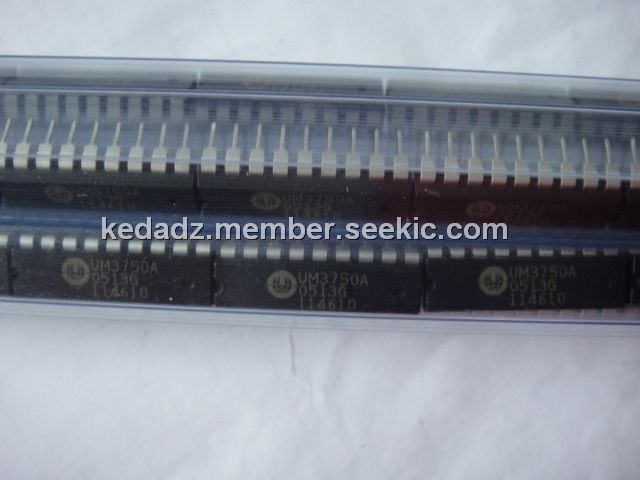

The UM3750A is a CMOS/LSI digital code transmitter-receiver system. It will sequentially encode and transmit 12bits of input.

Parametrics

Absolute maximum ratings: (1)power supply voltage:-0.3V to 11V; (2)operating temperature:-20鈩?to +70鈩? (3)storage temperature:-55鈩?to +150鈩? (4)applied voltage on any pin:GND-0.3V锛淰IN锛淰DD+0.3V.

Features

Features: (1)single chip contains both encoder and decoder; (2)3V to 11V operation; (3)on chip oscillator uses non-critical RC components; (4)schmitt trigger input provides excellent noise immunity; (5)interfaces with RF, ultrasonic, or infrared modulators and demodulators.

Diagrams

<IMG src="http://www.seekic.com/uploadfile/ic-mfg/201153224215673.jpg" border=0>
